监控组件

Prometheus

Prometheus 是一个开源系统监控和警报工具包。

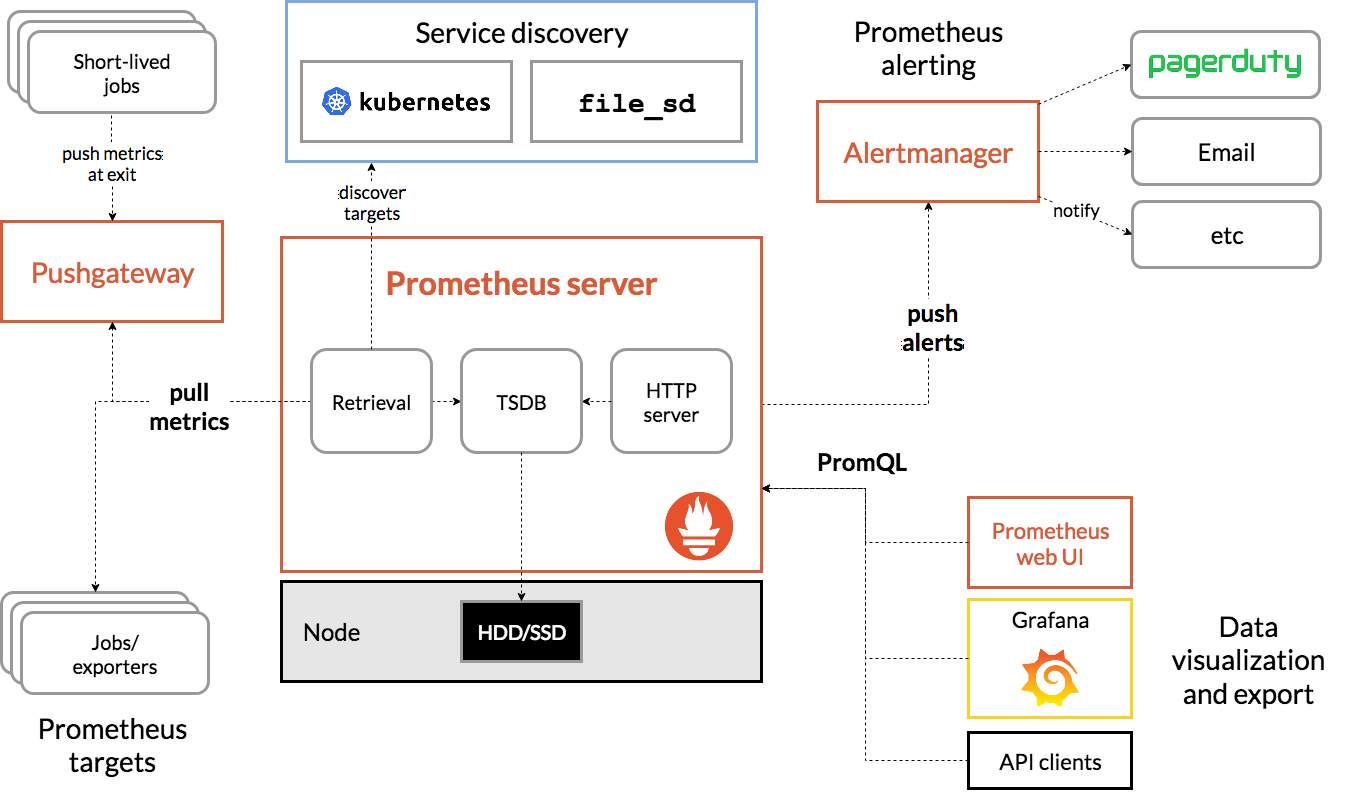

架构图

Grafana

Grafana 用于对收集并存储在 Prometheus 数据库中的指标进行分析和交互式可视化。 您可以以 Prometheus 作为数据源，为 Kubernetes 集群创建自定义图表、图形和警报。

Prometheus Operator

概述

Prometheus Operator 提供 Prometheus 及相关监控组件的 Kubernetes 原生部署和管理。 该项目的目的是简化和自动化 Kubernetes 集群基于 Prometheus 的监控堆栈的配置。

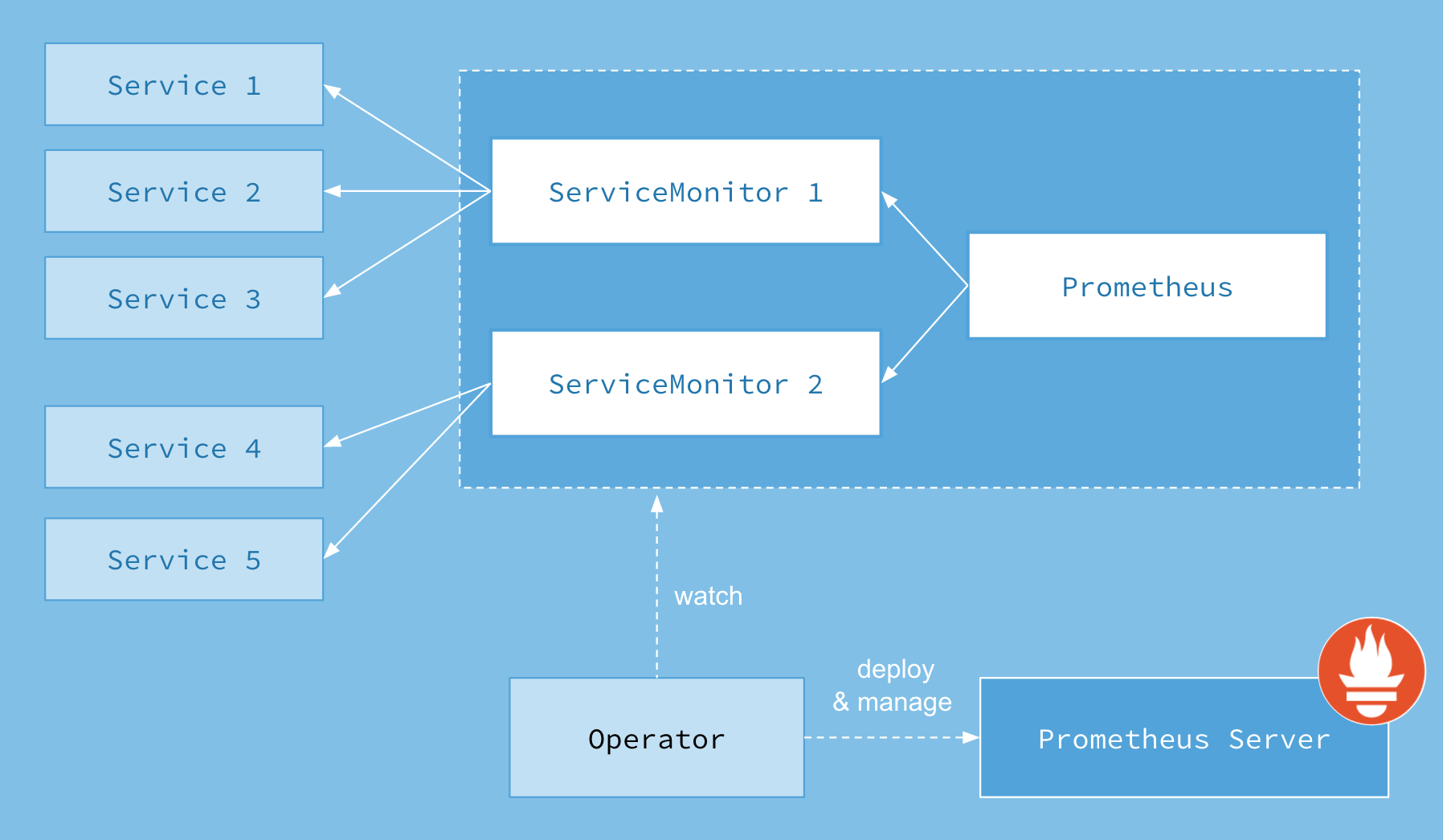

架构图

部署 Prometheus 和 Grafana Monitoring Stack

克隆 kube-prometheus 项目

git clone https://github.com/prometheus-operator/kube-prometheus.git
cd kube-prometheus/

创建 monitoring namespace, CustomResourceDefinitions 和 operator pod

创建 namespace 和 CustomResourceDefinitions

kubectl create -f manifests/setup

customresourcedefinition.apiextensions.k8s.io/alertmanagerconfigs.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/alertmanagers.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/podmonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/probes.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheuses.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheusagents.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheusrules.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/scrapeconfigs.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/servicemonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/thanosrulers.monitoring.coreos.com created
namespace/monitoring created

查看自定义资源 monitoring

kubectl get ns monitoring

NAME         STATUS   AGE
monitoring   Active   47s

部署 Prometheus Monitoring Stack

kubectl create -f manifests/

alertmanager.monitoring.coreos.com/main created
networkpolicy.networking.k8s.io/alertmanager-main created
poddisruptionbudget.policy/alertmanager-main created
prometheusrule.monitoring.coreos.com/alertmanager-main-rules created
secret/alertmanager-main created
service/alertmanager-main created
serviceaccount/alertmanager-main created
servicemonitor.monitoring.coreos.com/alertmanager-main created
clusterrole.rbac.authorization.k8s.io/blackbox-exporter created
clusterrolebinding.rbac.authorization.k8s.io/blackbox-exporter created
configmap/blackbox-exporter-configuration created
deployment.apps/blackbox-exporter created
networkpolicy.networking.k8s.io/blackbox-exporter created
service/blackbox-exporter created
serviceaccount/blackbox-exporter created
servicemonitor.monitoring.coreos.com/blackbox-exporter created
secret/grafana-config created
secret/grafana-datasources created
configmap/grafana-dashboard-alertmanager-overview created
configmap/grafana-dashboard-apiserver created
configmap/grafana-dashboard-cluster-total created
configmap/grafana-dashboard-controller-manager created
configmap/grafana-dashboard-grafana-overview created
configmap/grafana-dashboard-k8s-resources-cluster created
configmap/grafana-dashboard-k8s-resources-multicluster created
configmap/grafana-dashboard-k8s-resources-namespace created
configmap/grafana-dashboard-k8s-resources-node created
configmap/grafana-dashboard-k8s-resources-pod created
configmap/grafana-dashboard-k8s-resources-workload created
configmap/grafana-dashboard-k8s-resources-workloads-namespace created
configmap/grafana-dashboard-kubelet created
configmap/grafana-dashboard-namespace-by-pod created
configmap/grafana-dashboard-namespace-by-workload created
configmap/grafana-dashboard-node-cluster-rsrc-use created
configmap/grafana-dashboard-node-rsrc-use created
configmap/grafana-dashboard-nodes-darwin created
configmap/grafana-dashboard-nodes created
configmap/grafana-dashboard-persistentvolumesusage created
configmap/grafana-dashboard-pod-total created
configmap/grafana-dashboard-prometheus-remote-write created
configmap/grafana-dashboard-prometheus created
configmap/grafana-dashboard-proxy created
configmap/grafana-dashboard-scheduler created
configmap/grafana-dashboard-workload-total created
configmap/grafana-dashboards created
deployment.apps/grafana created
networkpolicy.networking.k8s.io/grafana created
prometheusrule.monitoring.coreos.com/grafana-rules created
service/grafana created
serviceaccount/grafana created
servicemonitor.monitoring.coreos.com/grafana created
prometheusrule.monitoring.coreos.com/kube-prometheus-rules created
clusterrole.rbac.authorization.k8s.io/kube-state-metrics created
clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics created
deployment.apps/kube-state-metrics created
networkpolicy.networking.k8s.io/kube-state-metrics created
prometheusrule.monitoring.coreos.com/kube-state-metrics-rules created
service/kube-state-metrics created
serviceaccount/kube-state-metrics created
servicemonitor.monitoring.coreos.com/kube-state-metrics created
prometheusrule.monitoring.coreos.com/kubernetes-monitoring-rules created
servicemonitor.monitoring.coreos.com/kube-apiserver created
servicemonitor.monitoring.coreos.com/coredns created
servicemonitor.monitoring.coreos.com/kube-controller-manager created
servicemonitor.monitoring.coreos.com/kube-scheduler created
servicemonitor.monitoring.coreos.com/kubelet created
clusterrole.rbac.authorization.k8s.io/node-exporter created
clusterrolebinding.rbac.authorization.k8s.io/node-exporter created
daemonset.apps/node-exporter created
networkpolicy.networking.k8s.io/node-exporter created
prometheusrule.monitoring.coreos.com/node-exporter-rules created
service/node-exporter created
serviceaccount/node-exporter created
servicemonitor.monitoring.coreos.com/node-exporter created
clusterrole.rbac.authorization.k8s.io/prometheus-k8s created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-k8s created
networkpolicy.networking.k8s.io/prometheus-k8s created
poddisruptionbudget.policy/prometheus-k8s created
prometheus.monitoring.coreos.com/k8s created
prometheusrule.monitoring.coreos.com/prometheus-k8s-prometheus-rules created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s-config created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s-config created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
service/prometheus-k8s created
serviceaccount/prometheus-k8s created
servicemonitor.monitoring.coreos.com/prometheus-k8s created
clusterrole.rbac.authorization.k8s.io/prometheus-adapter created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-adapter created
clusterrolebinding.rbac.authorization.k8s.io/resource-metrics:system:auth-delegator created
clusterrole.rbac.authorization.k8s.io/resource-metrics-server-resources created
configmap/adapter-config created
deployment.apps/prometheus-adapter created
networkpolicy.networking.k8s.io/prometheus-adapter created
poddisruptionbudget.policy/prometheus-adapter created
rolebinding.rbac.authorization.k8s.io/resource-metrics-auth-reader created
service/prometheus-adapter created
serviceaccount/prometheus-adapter created
servicemonitor.monitoring.coreos.com/prometheus-adapter created
clusterrole.rbac.authorization.k8s.io/prometheus-operator created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-operator created
deployment.apps/prometheus-operator created
networkpolicy.networking.k8s.io/prometheus-operator created
prometheusrule.monitoring.coreos.com/prometheus-operator-rules created
service/prometheus-operator created
serviceaccount/prometheus-operator created
servicemonitor.monitoring.coreos.com/prometheus-operator created

修改不能拉取的镜像，registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.10.0 修改为 m.daocloud.io/registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.10.0

kubectl --namespace monitoring patch deployment prometheus-adapter \
    -p '{"spec": {"template": {"spec": {"containers": [{"name": "prometheus-adapter", "image": "m.daocloud.io/registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.10.0"}]}}}}'

修改不能拉取的镜像，registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2 修改为 m.daocloud.io/registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2

kubectl --namespace monitoring patch deployment kube-state-metrics \
    -p '{"spec": {"template": {"spec": {"containers": [{"name": "kube-state-metrics", "image": "m.daocloud.io/registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2"}]}}}}'

查看 monitoring 名字空间中的所有 Pod

kubectl get pods -n monitoring -w

NAME                                   READY   STATUS    RESTARTS   AGE
alertmanager-main-0                    2/2     Running   0          20m
alertmanager-main-1                    2/2     Running   0          20m
alertmanager-main-2                    2/2     Running   0          20m
blackbox-exporter-7d8c77d7b9-l2czf     3/3     Running   0          22m
grafana-79f47474f7-wpb8q               1/1     Running   0          22m
kube-state-metrics-8cc8f7df6-hk9qt     3/3     Running   0          22m
node-exporter-dl85m                    2/2     Running   0          22m
node-exporter-g85bc                    2/2     Running   0          22m
node-exporter-gw29m                    2/2     Running   0          22m
prometheus-adapter-6b88dfd544-6fwfh    1/1     Running   0          22m
prometheus-adapter-6b88dfd544-x9g5p    1/1     Running   0          22m
prometheus-k8s-0                       2/2     Running   0          20m
prometheus-k8s-1                       2/2     Running   0          20m
prometheus-operator-557b4f4977-f7xk2   2/2     Running   0          22m

访问 Prometheus, Grafana 和 Alertmanager Dashboards

Grafana Dashboard

kubectl --namespace monitoring port-forward svc/grafana 3000

在浏览器中访问 http://localhost:3000

默认用户名和密码

Username: admin
Password: admin
支持中文

通过导航菜单：首页 > 管理 > 默认首选项，修改属性

  • Timezone: Browser Time
  • Language: English

Prometheus Dashboard

kubectl --namespace monitoring port-forward svc/prometheus-k8s 9090

在浏览器中访问 http://localhost:9090

Alert Manager Dashboard

kubectl --namespace monitoring port-forward svc/alertmanager-main 9093

在浏览器中访问 http://localhost:9093

卸载 Prometheus monitoring stack

kubectl delete --ignore-not-found=true -f manifests/ -f manifests/setup
