基于健康码识别的 FastAPI 同步和异步函数的基准测试
类别: 工作日志 测试 标签: Linux FastAPI async gunicorn uvicorn ab Docker目录
健康码识别服务使用了 FastAPI 进行开发的，本周主要工作是为了对健康码识别的服务进行性能调优。接口函数使用了 async 关键字，但是内部的实现并没有使用 await。由于改写成异步代码需要时间，这里并没有改写代码，只是删除了 async 关键字。部署服务使用了 uvicorn 和 gunicorn+uvicorn 两种方法。
基准测试工具使用的是 ab
测试流程
生成测试数据
准备测试图片 health.jpg
echo -n '{"base64": "' > health.json
base64 -w0 health.jpg >> health.json
echo -n '"}' >> health.json
部署服务
uvicorn
docker run --runtime=nvidia --rm -it -e NVIDIA_VISIBLE_DEVICES=2 -p 20001:8000 \
-v $(pwd):/health_code_service --name=health-uvicorn health-code-service \
uvicorn controller:app --host 0.0.0.0 --workers 1
- workers 并发进程数
gunicorn + uvicorn
docker run --runtime=nvidia --rm -it -e NVIDIA_VISIBLE_DEVICES=2 -p 20001:8000 \
-v $(pwd):/health_code_service --name=health-gunicorn-uvicorn health-code-service:gunicorn-uvicorn \
gunicorn app.main:app --worker-class uvicorn.workers.UvicornWorker --bind 0.0.0.0 --workers 1
性能压测
ab -n200 -c20 -p health.json -T "application/json" http://172.16.33.66:20001/analysis/health-code
异步函数测试
函数
@app.post("/analysis/{usage}")
async def detect_image(usage: str = None, json: Base64 = None):
img = base64_to_image(json.base64)
return detect(usage, img)
uvicorn
并发 2 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 44.203 seconds
Complete requests: 200
Failed requests: 0
Total transferred: 63000 bytes
Total body sent: 71540768
HTML transferred: 34000 bytes
Requests per second: 4.52 [#/sec] (mean)
Time per request: 4420.285 [ms] (mean)
Time per request: 221.014 [ms] (mean, across all concurrent requests)
Transfer rate: 1.39 [Kbytes/sec] received
1580.53 kb/s sent
1581.92 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 1 0.4 0 2
Processing: 417 4176 2661.4 3205 11977
Waiting: 412 2453 1885.9 1739 7986
Total: 418 4177 2661.5 3207 11978
ERROR: The median and mean for the initial connection time are more than twice the standard
deviation apart. These results are NOT reliable.
Percentage of the requests served within a certain time (ms)
50% 3207
66% 5827
75% 6553
80% 7226
90% 8011
95% 8013
98% 8571
99% 10970
100% 11978 (longest request)
并发 4 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 24.732 seconds
Complete requests: 200
Failed requests: 0
Total transferred: 63000 bytes
Total body sent: 69869776
HTML transferred: 34000 bytes
Requests per second: 8.09 [#/sec] (mean)
Time per request: 2473.190 [ms] (mean)
Time per request: 123.660 [ms] (mean, across all concurrent requests)
Transfer rate: 2.49 [Kbytes/sec] received
2758.87 kb/s sent
2761.36 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 1 2.4 0 35
Processing: 418 2230 1520.5 2050 5614
Waiting: 414 1480 1084.2 1260 5590
Total: 419 2231 1520.6 2051 5614
Percentage of the requests served within a certain time (ms)
50% 2051
66% 2544
75% 2894
80% 3231
90% 5181
95% 5442
98% 5613
99% 5613
100% 5614 (longest request)
gunicorn + uvicorn
并发 2 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 48.839 seconds
Complete requests: 200
Failed requests: 1
(Connect: 0, Receive: 0, Length: 1, Exceptions: 0)
Total transferred: 62685 bytes
Total body sent: 70457664
HTML transferred: 33830 bytes
Requests per second: 4.10 [#/sec] (mean)
Time per request: 4883.850 [ms] (mean)
Time per request: 244.193 [ms] (mean, across all concurrent requests)
Transfer rate: 1.25 [Kbytes/sec] received
1408.85 kb/s sent
1410.11 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 1 0.4 0 3
Processing: 429 4644 2576.1 4605 11602
Waiting: 0 2617 1654.9 2447 7889
Total: 430 4644 2576.1 4606 11603
ERROR: The median and mean for the initial connection time are more than twice the standard
deviation apart. These results are NOT reliable.
Percentage of the requests served within a certain time (ms)
50% 4606
66% 5409
75% 6006
80% 6530
90% 7533
95% 10271
98% 11603
99% 11603
100% 11603 (longest request)
并发 4 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 23.364 seconds
Complete requests: 200
Failed requests: 0
Total transferred: 63000 bytes
Total body sent: 69232656
HTML transferred: 34000 bytes
Requests per second: 8.56 [#/sec] (mean)
Time per request: 2336.394 [ms] (mean)
Time per request: 116.820 [ms] (mean, across all concurrent requests)
Transfer rate: 2.63 [Kbytes/sec] received
2893.78 kb/s sent
2896.41 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.3 0 2
Processing: 409 2190 1281.7 1988 6548
Waiting: 404 1470 877.4 1328 4790
Total: 409 2190 1281.7 1990 6549
Percentage of the requests served within a certain time (ms)
50% 1990
66% 2618
75% 2777
80% 3006
90% 4002
95% 4807
98% 5846
99% 6448
100% 6549 (longest request)
同步函数测试
函数
@app.post("/analysis/{usage}")
def detect_image(usage: str = None, json: Base64 = None):
img = base64_to_image(json.base64)
return detect(usage, img)
uvicorn
1 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 41.372 seconds
Complete requests: 200
Failed requests: 80
(Connect: 0, Receive: 0, Length: 80, Exceptions: 0)
Non-2xx responses: 21
Total transferred: 60470 bytes
Total body sent: 68694000
HTML transferred: 31302 bytes
Requests per second: 4.83 [#/sec] (mean)
Time per request: 4137.204 [ms] (mean)
Time per request: 206.860 [ms] (mean, across all concurrent requests)
Transfer rate: 1.43 [Kbytes/sec] received
1621.48 kb/s sent
1622.91 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.3 0 2
Processing: 449 4021 501.4 4133 4906
Waiting: 445 3971 500.8 4067 4842
Total: 450 4022 501.4 4133 4907
Percentage of the requests served within a certain time (ms)
50% 4133
66% 4231
75% 4288
80% 4334
90% 4458
95% 4652
98% 4705
99% 4856
100% 4907 (longest request)
并发 2 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 18.655 seconds
Complete requests: 200
Failed requests: 26
(Connect: 0, Receive: 0, Length: 26, Exceptions: 0)
Non-2xx responses: 5
Total transferred: 62428 bytes
Total body sent: 68694000
HTML transferred: 33388 bytes
Requests per second: 10.72 [#/sec] (mean)
Time per request: 1865.511 [ms] (mean)
Time per request: 93.276 [ms] (mean, across all concurrent requests)
Transfer rate: 3.27 [Kbytes/sec] received
3596.01 kb/s sent
3599.28 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.4 0 3
Processing: 455 1777 410.4 1760 2785
Waiting: 450 1764 408.2 1750 2754
Total: 455 1778 410.5 1760 2786
Percentage of the requests served within a certain time (ms)
50% 1760
66% 1944
75% 2058
80% 2136
90% 2324
95% 2493
98% 2724
99% 2781
100% 2786 (longest request)
并发 4 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 9.289 seconds
Complete requests: 200
Failed requests: 5
(Connect: 0, Receive: 0, Length: 5, Exceptions: 0)
Non-2xx responses: 1
Total transferred: 62860 bytes
Total body sent: 68694000
HTML transferred: 33852 bytes
Requests per second: 21.53 [#/sec] (mean)
Time per request: 928.936 [ms] (mean)
Time per request: 46.447 [ms] (mean, across all concurrent requests)
Transfer rate: 6.61 [Kbytes/sec] received
7221.59 kb/s sent
7228.20 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.5 0 3
Processing: 480 850 373.1 757 2431
Waiting: 472 844 367.7 752 2412
Total: 480 851 373.5 757 2433
Percentage of the requests served within a certain time (ms)
50% 757
66% 821
75% 909
80% 935
90% 1084
95% 1904
98% 2418
99% 2429
100% 2433 (longest request)
并发 6 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 8.391 seconds
Complete requests: 200
Failed requests: 8
(Connect: 0, Receive: 0, Length: 8, Exceptions: 0)
Non-2xx responses: 2
Total transferred: 62727 bytes
Total body sent: 68934368
HTML transferred: 33711 bytes
Requests per second: 23.84 [#/sec] (mean)
Time per request: 839.071 [ms] (mean)
Time per request: 41.954 [ms] (mean, across all concurrent requests)
Transfer rate: 7.30 [Kbytes/sec] received
8023.01 kb/s sent
8030.31 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.4 0 3
Processing: 316 770 315.1 705 2297
Waiting: 312 765 310.8 702 2270
Total: 316 770 315.4 705 2299
Percentage of the requests served within a certain time (ms)
50% 705
66% 754
75% 784
80% 802
90% 874
95% 1162
98% 2268
99% 2291
100% 2299 (longest request)
并发 8 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 7.878 seconds
Complete requests: 200
Failed requests: 5
(Connect: 0, Receive: 0, Length: 5, Exceptions: 0)
Non-2xx responses: 1
Total transferred: 62882 bytes
Total body sent: 68694000
HTML transferred: 33874 bytes
Requests per second: 25.39 [#/sec] (mean)
Time per request: 787.831 [ms] (mean)
Time per request: 39.392 [ms] (mean, across all concurrent requests)
Transfer rate: 7.79 [Kbytes/sec] received
8515.03 kb/s sent
8522.82 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.4 0 3
Processing: 439 718 177.8 674 1453
Waiting: 434 713 172.4 671 1432
Total: 440 719 178.0 674 1454
Percentage of the requests served within a certain time (ms)
50% 674
66% 711
75% 749
80% 765
90% 906
95% 1156
98% 1436
99% 1453
100% 1454 (longest request)
gunicorn + uvicorn
1 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 41.205 seconds
Complete requests: 200
Failed requests: 62
(Connect: 0, Receive: 0, Length: 62, Exceptions: 0)
Non-2xx responses: 18
Total transferred: 60884 bytes
Total body sent: 68694000
HTML transferred: 31740 bytes
Requests per second: 4.85 [#/sec] (mean)
Time per request: 4120.517 [ms] (mean)
Time per request: 206.026 [ms] (mean, across all concurrent requests)
Transfer rate: 1.44 [Kbytes/sec] received
1628.05 kb/s sent
1629.49 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.5 0 3
Processing: 430 4011 518.4 4091 4911
Waiting: 425 3970 513.4 4072 4886
Total: 431 4011 518.5 4091 4913
Percentage of the requests served within a certain time (ms)
50% 4091
66% 4220
75% 4279
80% 4322
90% 4434
95% 4605
98% 4874
99% 4896
100% 4913 (longest request)
并发 2 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 18.574 seconds
Complete requests: 200
Failed requests: 29
(Connect: 0, Receive: 0, Length: 29, Exceptions: 0)
Non-2xx responses: 7
Total transferred: 62130 bytes
Total body sent: 68694000
HTML transferred: 33074 bytes
Requests per second: 10.77 [#/sec] (mean)
Time per request: 1857.429 [ms] (mean)
Time per request: 92.871 [ms] (mean, across all concurrent requests)
Transfer rate: 3.27 [Kbytes/sec] received
3611.66 kb/s sent
3614.92 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 1.2 0 15
Processing: 447 1769 526.4 1770 3360
Waiting: 442 1755 522.6 1756 3329
Total: 448 1769 526.4 1770 3362
Percentage of the requests served within a certain time (ms)
50% 1770
66% 1889
75% 2002
80% 2039
90% 2184
95% 3156
98% 3315
99% 3325
100% 3362 (longest request)
并发 4 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 10.056 seconds
Complete requests: 200
Failed requests: 13
(Connect: 0, Receive: 0, Length: 13, Exceptions: 0)
Non-2xx responses: 5
Total transferred: 62382 bytes
Total body sent: 68694000
HTML transferred: 33342 bytes
Requests per second: 19.89 [#/sec] (mean)
Time per request: 1005.629 [ms] (mean)
Time per request: 50.281 [ms] (mean, across all concurrent requests)
Transfer rate: 6.06 [Kbytes/sec] received
6670.85 kb/s sent
6676.91 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.3 0 3
Processing: 422 921 292.0 836 1931
Waiting: 419 915 286.9 833 1899
Total: 422 921 292.3 836 1932
Percentage of the requests served within a certain time (ms)
50% 836
66% 931
75% 1007
80% 1082
90% 1275
95% 1697
98% 1788
99% 1901
100% 1932 (longest request)
并发 6 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 9.188 seconds
Complete requests: 200
Failed requests: 7
(Connect: 0, Receive: 0, Length: 7, Exceptions: 0)
Non-2xx responses: 2
Total transferred: 62787 bytes
Total body sent: 68694000
HTML transferred: 33771 bytes
Requests per second: 21.77 [#/sec] (mean)
Time per request: 918.756 [ms] (mean)
Time per request: 45.938 [ms] (mean, across all concurrent requests)
Transfer rate: 6.67 [Kbytes/sec] received
7301.61 kb/s sent
7308.28 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.3 0 2
Processing: 349 822 204.3 764 1435
Waiting: 346 816 199.3 760 1418
Total: 349 822 204.5 765 1436
Percentage of the requests served within a certain time (ms)
50% 765
66% 830
75% 885
80% 919
90% 1100
95% 1369
98% 1435
99% 1435
100% 1436 (longest request)
并发 8 个进程
Server Software: uvicorn
Server Hostname: 172.16.33.66
Server Port: 20001
Document Path: /analysis/health-code
Document Length: 170 bytes
Concurrency Level: 20
Time taken for tests: 7.959 seconds
Complete requests: 200
Failed requests: 4
(Connect: 0, Receive: 0, Length: 4, Exceptions: 0)
Non-2xx responses: 1
Total transferred: 62889 bytes
Total body sent: 68694000
HTML transferred: 33881 bytes
Requests per second: 25.13 [#/sec] (mean)
Time per request: 795.879 [ms] (mean)
Time per request: 39.794 [ms] (mean, across all concurrent requests)
Transfer rate: 7.72 [Kbytes/sec] received
8428.92 kb/s sent
8436.64 kb/s total
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 1.5 0 20
Processing: 444 728 175.0 677 1586
Waiting: 440 723 169.6 674 1542
Total: 445 728 175.3 677 1587
Percentage of the requests served within a certain time (ms)
50% 677
66% 729
75% 771
80% 827
90% 928
95% 1026
98% 1494
99% 1570
100% 1587 (longest request)

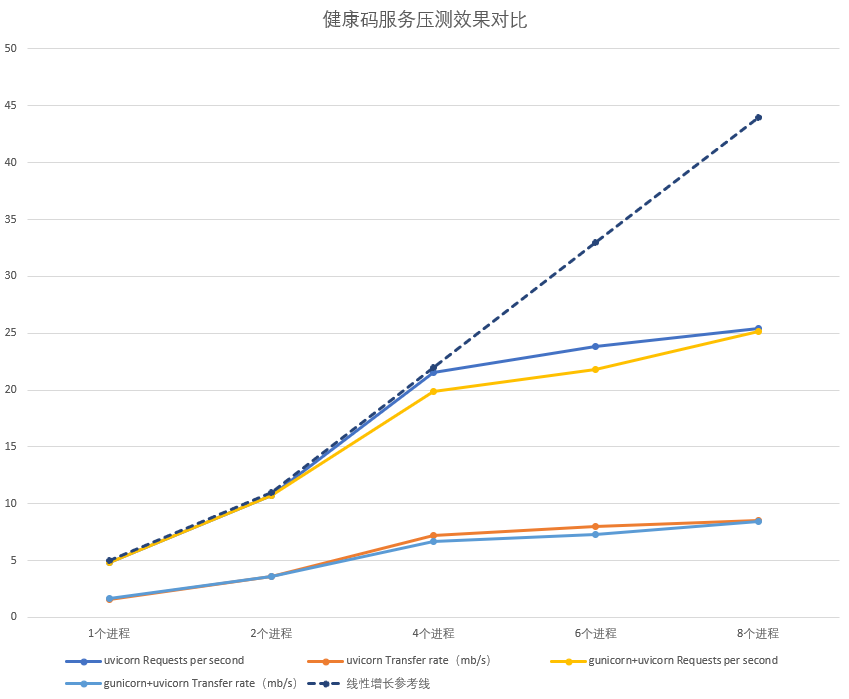

总结
- 4 个进程可以发挥到最佳效果
- 8 个进程已经到了上限了
- 在部署这种密集计算的应用下，gunicorn + uvicorn 并没有比 uvicorn 强，但如果您需要管理进程，它们就是最佳组合。
- 通过基准测试发现，最大的瓶颈不是 GPU，而且 CPU，GPU 一张卡的负载还没有 40 核 CPU 的负载高。
异步（使用了 async 关键字）函数，在压测的过程中基本上不会失败（Failed）,同步函数，在压测过程中会经常失败，随着并发数的增加而增加。目前还没有找到原因
